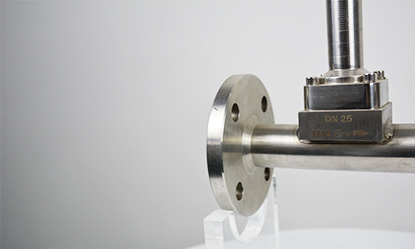

Integrated vortex flow meter
Introduction
Integrated vortex flow meter works based on Carmen and Strouhal relevant spiral produce and on the theory of the flow relationship. Vortex flow meters measure flows of liquid, gas and steam by detecting the frequency at which vortices are alternatively shed from a bluff body. According to proven laws and physics, the frequency at which the vortices are shed is directly proportional to the flow velocity.
Specification
| Measured Medium | Liquid, Gas, Steam |
| Medium Temp | -40℃~+200℃; -40℃~+280℃; 40℃~+350℃ |
| Nominal Pressure | 1.6MPa;2.5MPa;4.0MPa;6.4MPa(Other pressure can be custom,need consult supplier) |
| Accuracy | 1.0%(Flange), 1.5%(Insertion) |
| Measuring range ratio | 1:10(Standard air condition as reference) 1:15(Liquid) |
| Flow Range | Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s |
| Specifications | DN15-DN300(Flange), DN80-DN2000(Insertion), DN15-DN100(Thread), DN15-DN300(Wafer), DN15-DN100(Sanitary) |
| Material | SS304(Standard), SS316(Optional) |
| Pressure Loss Coefficient | Cd≤2.6 |
| Vibration Acceleration Allowed | ≤0.2g |
| IEP ATEX | II 1G Ex ia IIC T5 Ga |
| Ambient Condition | Ambient Temp:-40℃-65℃(Non-explosion-proof site); -20℃-55℃(Explosion-proof site) |
| Relative Humidity:≤85% | |
| Pressure:86kPa-106kPa | |
| Power Supply | 12-24V/DC or 3.6V battery powered |
| Signal Output | Pulse frequency signal2-3000Hz, Low level≤1V, high level≥6V |
| Two-wire system 4-20 signal(isolated output), Load≤500 |
Feature
-
Japan technology with embedded-type sensor,sensor could integrate with temperature.
-
Circuit Board: Digital circuit board,anti-vibration and anti-interference.
-
Flow converter: Distinctive modular design, amateurs can operate, disassemble and assemble easily, it will avoid accident risks.
-
Integral forging, anti-rust, long service life
-
Resist high temperature up to 350℃,normal temperature up to 250℃
Application
Vortex flow meter is professional in measuring non-conductive liquids, gases, saturated and superheated steam, especially for steam measurement trade settlement. Except work as flow meter, vortex flow meter can also work as heat meter to measure the Gross/net heat of steam and hot water.
Vortex flow meter usually monitor the compressor output and evaluation of Free Air Delivery (FAD) There has lots of Industrial gases, such as natural gas, nitrogen gas, liquefied gases, flue gases, carbon dioxide etc, all could use vortex flow meter.
In many factories, compressed air monitoring is very important, vortex flow meter also could use for process control. Besides the different gases measurement, vortex flow meter could also used for light oil or any purified water，such as thermal oils, Desalinated water, demineralized water, RO water, boiler feed water, condensate water etc. In the Chemicals and petrochemicals industries, there also has lots of gases or liquid could use vortex flow meter for monitoring.
