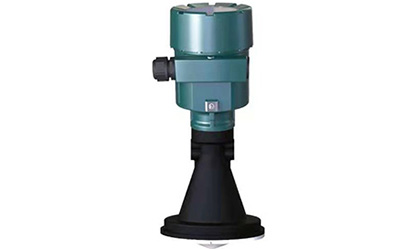

Radar level meter
Introduction
Radar level meter transmit high-frequency microwave pulses and receive pulses back through the antenna system. Radar waves travel at the speed of light and encounter the surface of the measured medium. Part of the energy is reflected back and received by the same antenna. The time interval between the transmitted pulse and the received pulse is the same as that of the antenna to the measured medium. The distance to the surface of the medium is proportional. The running time can be converted into a level signal by electronic components. A special time extension method can ensure stable and accurate measurement.
Even if there are false echoes under complicated working conditions, the latest micro-processing technology and debugging software can accurately identify the level echo.
Specification
| Application | Sanitary and food grade liquids |
| Level Range | 20 meters |
| Process Pressure | normal |
| Process Temperature | -60~150℃ |
| Accuracy | ±2mm |
| Repeatability | ±1mm |
| Connection | Thread, Flange |
| Frequency | 26GHz |
| Output | 4-20mA+HART(24V DC two wire/four wire) 4-20mA+HART(220V AC two four wire) |
| Explosion proof | Exia IIC T6 Ga |
| Enclosure | IP67 |
| Housing Material | Aluminum |
Feature
-
Sanitary non contact level measurement
-
Small blank area
-
Small beam angleensures accurate level measurement
-
Easy to install and dismantle and clean
Application:
It adapts composite sanitary antenna, it has small beam angle, strong wave gathering ability and high precision, etc. It is mainly used for liquid height measurement in sanitary storage containers such as food factories and pharmaceutical factories.
