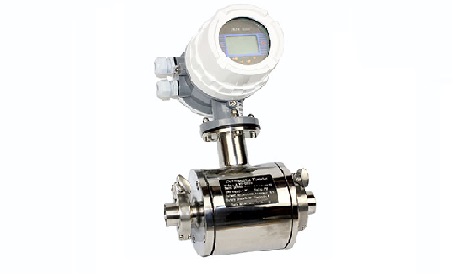

Sanitary electromagnetic flow meter

Electromagnetic flowmeter is a kind of inductional instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube.

Introduction

Electromagnetic flowmeter is a kind of inductional instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube. It adopts the technology of insertion of single chip to realize digital excitation and employs CAN local fieldbus.

Electromagnetic flow meter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc.

Besides measuring flow of general conductive liquid electromagnetic flowmeter can measure flow of liquid-solid mixed fluid, high-viscosity fluid and salt, strong acid and strong alkali.

Specification

Suitable Diameter DN3~DN3000
Electrodes Materials SUS316L , Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum
Suitable Fluid Liquid with conductive ratio more than 5 μs/cm
Measuring Range 0.1~10m/s (extendable to 15m/s)
Upper Limit of Span 0.5~10m/s. 1~5m/s recommended
Accuracy 0.3%, 0.5%, 1.0%
Output Signals 4~20mA, pulse, frequency, RS485, HART, profibus, FUJI
Operation Pressure 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (special)
Fluid Temperature -20C~80C,  -20~160C
Ambient Temperature Sensor -40C~80C. transducer -15C~50C
Ambient Humidity <= 85%RH (at 20C)
Cable Outlet Size M20(16) ×1.5, 1/2" NPT
Power Supply 220VAC±10%, 50Hz±1Hz, 24VDC±10%
Power Consumption <=8W
Protection Ratings Integral type: IP65. remote type: sensor IP68, transducer IP65
Materials of Liner PTFE, soft rubber, hard rubber, PFA, etc
Process Connection Flange: ANSI, DIN, JIS,ISO,GB standard Thread: NPT, BSP, G Tri-clamp connection
Earthing Materials 316L (stainless steel), HC, Ti, Ta, Cu
Housing Material Carbon steel, 304SS, 316SS

Feature

  • Food grade material is harmless to body.

  • Withstand high temperature disinfection.

  • Tri-clamp connection is easy to install and dismantle and easy to clean.

Application:

Sanitary electromagnetic flow meter is mainly used in drinking water, milk, ground water, beer, wine, jam, juice and other food & drink industries. It is also widely used in paper pulp, gypsum slurry because it can be cleaned easily.

It adopts harmless stainless steel material so it can measure food directly. And it can withstand high temperature steam disinfection.

Local display type can withstand -20-60 deg C temperature, remote display can withstand -20-120 deg C.
