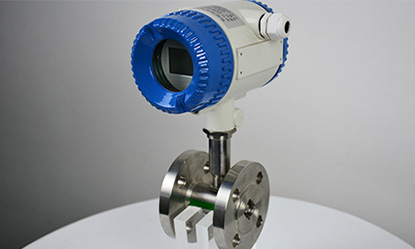

Turbine flow meter
Introduction
Over the years, FELIX Turbine Flow Meter has been commissioned in many parts of the world, received praise from end-users and industrial leaders. Turbine Flow Meter offers two accuracy classes, 0.5%R and 0.2%R. Its simple structure allows a small pressure loss and virtually no maintenance requirements. The Flange Type Turbine Flow Meter offers two types of converter options, Compact Type (Direct Mount) and Remote Type. Our users can select the preferred converter type depending on the commissioning environment.
Specification
| Size & Process Connection | Thread connection:DN4,6,10,15,20,32,40,50,65,80,100 |
| Flange connection:DN15,20,32,40,50,65,80,100,125,200 | |
| Clamp connection:DN4,6,10,15,20,32,40,50,65,80,100 | |
| Accuracy | ±0.5%, ±0.2% Optional |
| Sensor Material | SS304, SS316L Optional |
| Ambient Conditions | Medium temperature:-20℃~+150℃ |
| Atmospheric pressure:86Kpa~106Kpa | |
| Ambient temperature:-20℃~+60℃ | |
| Relative humidity:5%~90% | |
| Signal Output | Pulse, 4-20mA, Alarm(optional) |
| Digital Communication | RS485, MODBUS; HART |
| Power Supply | 24V DC/3.6V Lithium Battery |
| Cable Entry | M20*1.5; 1/2"NPT |
| Explosion-proof class | Ex d IIC T6 Gb |
| Protection class | IP65; IP67 Optional |
Feature
Flange Turbine Flow Meter is a speed meter with the advantages of high accuracy, good repeatability, simple structure, low pressure loss and convenient maintenance.
It is an economic flow solution offering outstanding accuracy with a bearing construction which gives highly reliable performance over long periods.
It is widely used in industries such as petroleum, chemical industry, metallurgy, urban gas pipeline network, etc.
